Tech Breakdown: Modular Low Voltage Switchgear (HJ-LVS Series)

In complex power distribution networks, Low Voltage (LV) switchgear serves as the critical hub ensuring safe terminal power usage and efficient routing. For facilities with high energy demands, understanding the internal architecture of these systems is essential for maximizing uptime and safety.

Today, we are breaking down the internal engineering logic and design essence of the HJ-LVS Series Compact Withdrawable Switchgear (optimized on the classic MNS/GGD/GCK architecture).

Core Engineering of the HJ-LVS Series

1. Main Busbar System (Horizontal & Vertical)

The “main arteries” of the switchgear are paramount. Our systems utilize high-conductivity electrolytic copper paired with robust insulation supports. This engineering ensures absolute stability even under severe Rated Short-time Withstand Current (Icw) impacts of up to 80kA, preventing structural deformation during short circuits.

2. Modular Withdrawable Units

The withdrawable drawer design significantly minimizes the footprint while enabling true “online maintenance.” Molded Case Circuit Breaker (MCCB) drawer units feature highly reliable mechanical interlocking. This guarantees that maintenance can only be performed safely when the unit is physically locked in the isolated position, strictly adhering to IEC safety protocols.

3. ACB & MCCB Protection Coordination

Integrating high-performance circuit breakers compliant with IEC standards is non-negotiable. Air Circuit Breakers (ACB) handle the massive incoming loads, while MCCBs provide precise overload, short-circuit, and grounding protection for outgoing feeder circuits.

Typical Application Scenarios

Thanks to its compact design and high protection degrees (ranging from IP30 to IP41), the withdrawable LV switchgear is highly adaptable and widely deployed in demanding environments:

• Industrial Manufacturing Bases: Handling high-intensity current loads and complex operational environments.
• Commercial Complexes & High-Rises: Typically installed in underground distribution rooms to guarantee a reliable baseline power supply.
• Data Centers: Providing the uninterrupted and highly stable precision power distribution required for critical IT infrastructure.

Engineering Depth You Can Trust

At HJATIS Power, we operate as a comprehensive power solution provider. We leverage deep engineering expertise rather than just assembling components. We believe that understanding the core mechanics is the first step in delivering reliable, internationally compliant power equipment to our global partners.

Explore the complete technical specifications of our solutions:
👉 View the HJ-LVS Series Compact Withdrawable Switchgear

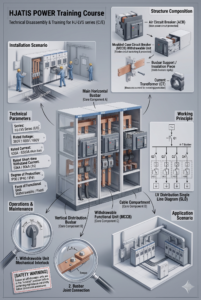

Disclaimer: The technical diagrams and breakdowns provided in this post are intended strictly for technical training and conceptual explanation. Always adhere strictly to relevant IEC standards and on-site safety protocols when operating electrical equipment.
