IEC 60079-0
Applicable edition and protection method depend on the destination and selected model.
ExGAS & DUST OPTIONS
Cable Entry & Junction

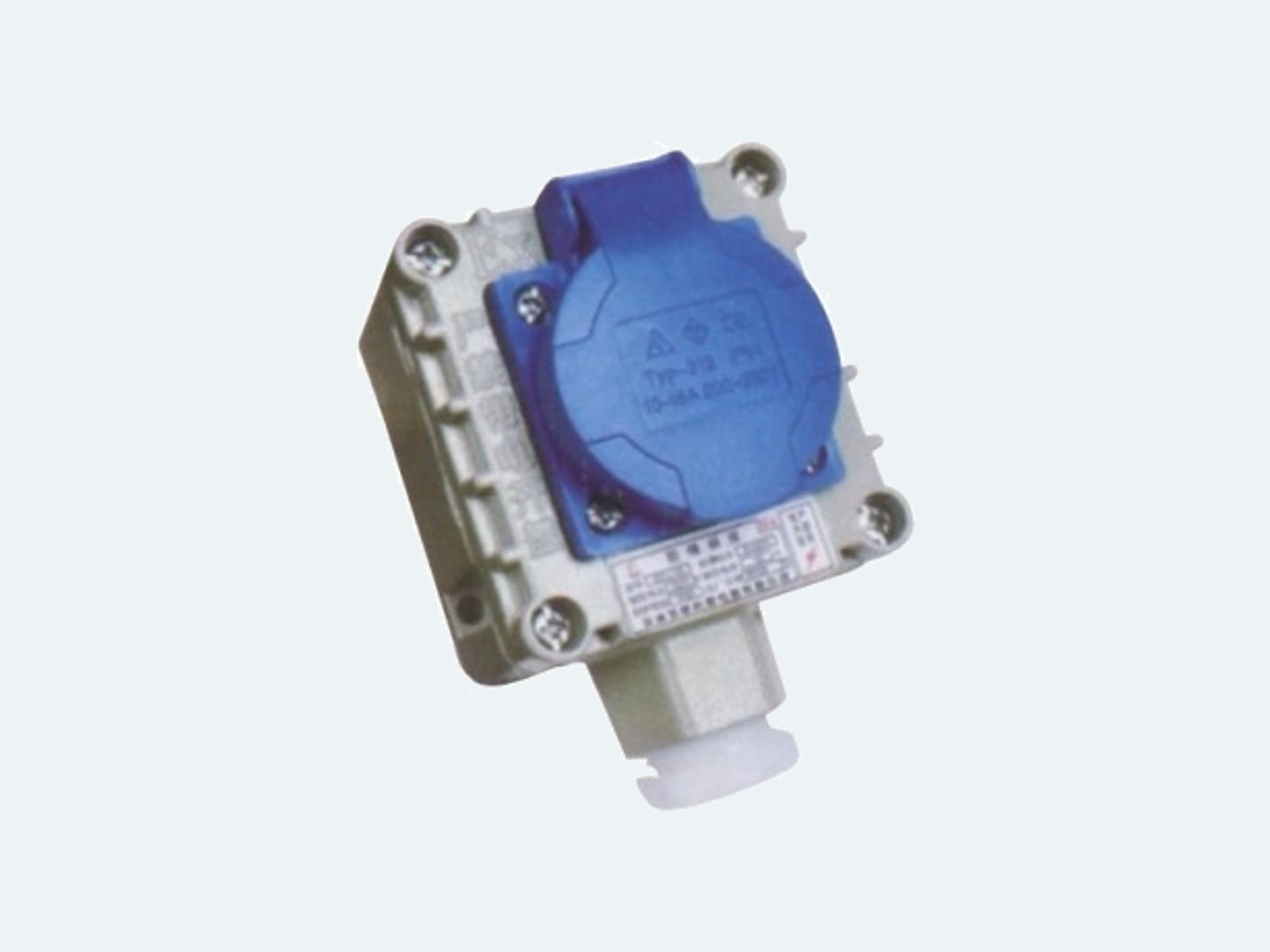

Explosion-Protected Plugs & Socket Outlets
Industrial plugs, sockets and interlocked outlets selected by voltage, current, poles and installation duty.
12 variantsExact marking confirmed by offered modelModel data to confirm
Confirm model details with your quotation
Some listed models have incomplete model codes or ratings. Send the intended operating conditions with your enquiry. HJATIS will confirm the proposed model, ratings, Ex marking and the scope of available documents and certificates before issuing a quotation.
Indicative wholesale starting priceFrom US$25
Request a quote →Price varies by model, rating, material and certification scope. Mixed-model quantities, lead time and destination requirements are quoted against the submitted schedule.
01GAS & DUST OPTIONS
02Cable Entry & Junction
03MOQ from 20 pcs per model
04Model, marking and documents checked at quotation
SERIES & MODEL VARIANTS
Compare the available series.
Select the closest listed construction, then include the project voltage, rating, marking and installation data in the inquiry.
| Series / model | Listed duty | Construction or rating noted | Selection data still required |
|---|---|---|---|
| AC | Plug and socket | Gas / vapour version | Voltage, ratings, marking and installation |
| AC-DIP | Dust explosion-protected Plug and socket | Combustible-dust version | Voltage, ratings, marking and installation |
| BWHC | Plug and socket | Gas / vapour version | Voltage, ratings, marking and installation |
| BXS | Maintenance socket outlet enclosure | Gas / vapour version | Voltage, ratings, marking and installation |
| BXS(D) | Maintenance socket outlet enclosure | Gas / vapour version | Voltage, ratings, marking and installation |
| BXS8030 | corrosion-resistant Socket outlet enclosure | Gas / vapour version · Corrosion-resistant duty | Voltage, ratings, marking and installation |
| C1 | Plug and socket | Gas / vapour version | Voltage, ratings, marking and installation |
| C4 | Plug and socket | Gas / vapour version | Voltage, ratings, marking and installation |
| SOCKET-1 | Socket outlet | Gas / vapour version | MODEL DATA TO CONFIRMVoltage, ratings, marking and installation |
| SOCKET-2 | Socket outlet | Gas / vapour version | MODEL DATA TO CONFIRMVoltage, ratings, marking and installation |
| SOCKET-3 | Socket outlet | Gas / vapour version | MODEL DATA TO CONFIRMVoltage, ratings, marking and installation |
| ZXF8575 | corrosion-resistant Socket outlet | Gas / vapour version · Corrosion-resistant duty | Voltage, ratings, marking and installation |
RFQ INPUTS
Details for a quotation.
These fields describe the project duty. They are not published ratings for every model in this family.
| Thread interface | M, G or NPT standard, size, pitch and engagement |
|---|---|
| Cable data | Outside diameter, conductor count, armour and sheath |
| Material | Nickel-plated brass, stainless steel or approved alternative |
| Sealing method | Compression, compound barrier or conduit seal |
| Host equipment | Protection concept, entry direction, enclosure material and corrosion duty |
| Documents | Entry-device certificate, instruction and permitted size range |
STANDARDS & DOCUMENTS
Documents for the selected model.
The destination-market baseline and standards cited in source files are shown separately. Neither applies to every series automatically.
IEC 60079 series — gas / vapour protection method by model
Applicable edition and protection method depend on the destination and selected model.
IEC 60079-31
Applicable edition and protection method depend on the destination and selected model.
IEC 60529
Applicable edition and protection method depend on the destination and selected model.
Request the supplier/manufacturer document set with the quotation.
HJATIS will request the current datasheet, drawing, marking and model-specific certificate schedule for the selected variant.
Request product documents →OTHER EQUIPMENT
Related product families.

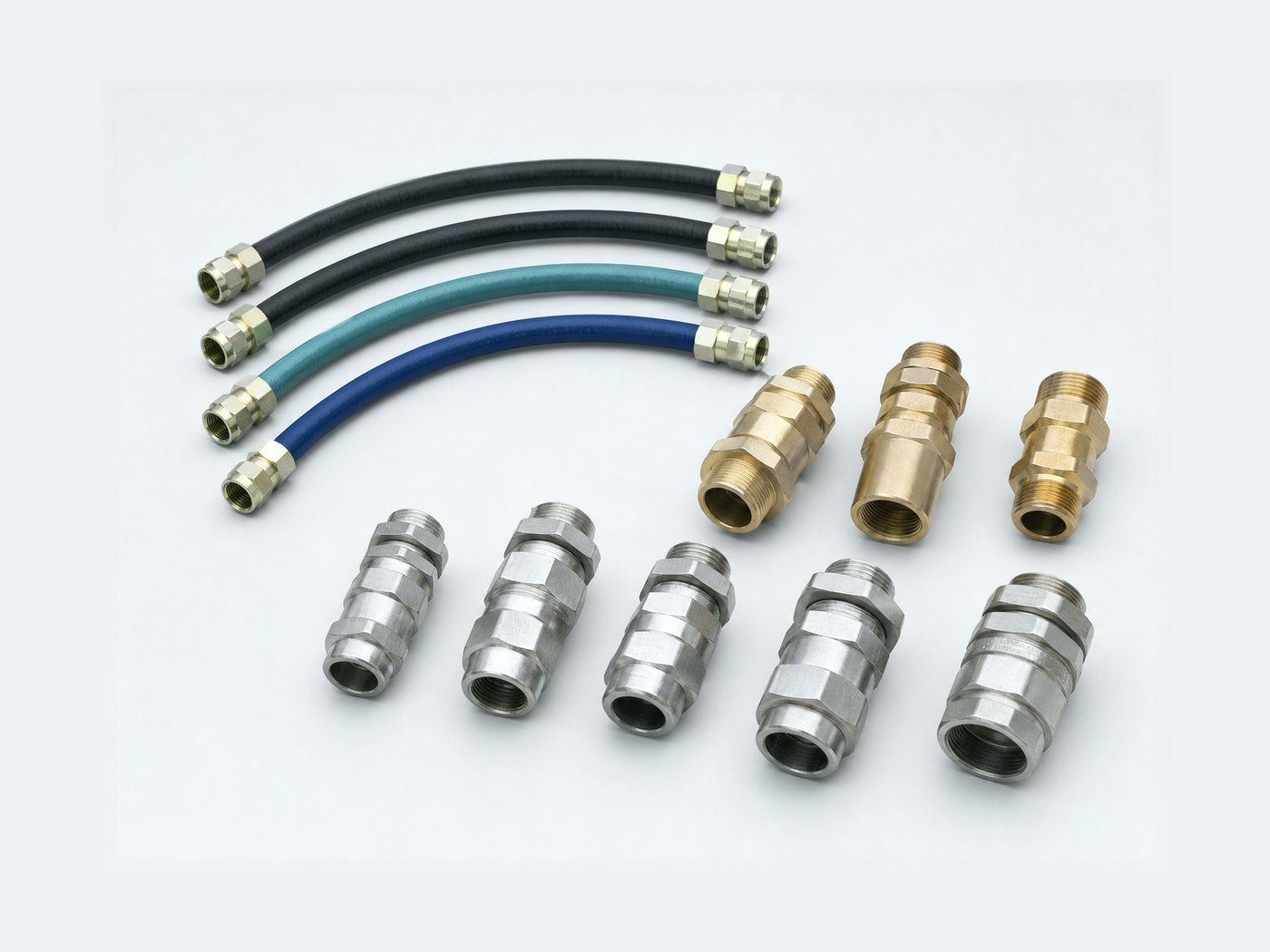

Explosion-Protected Cable Glands
9 variants · MOQ from 50 pcs
View family →

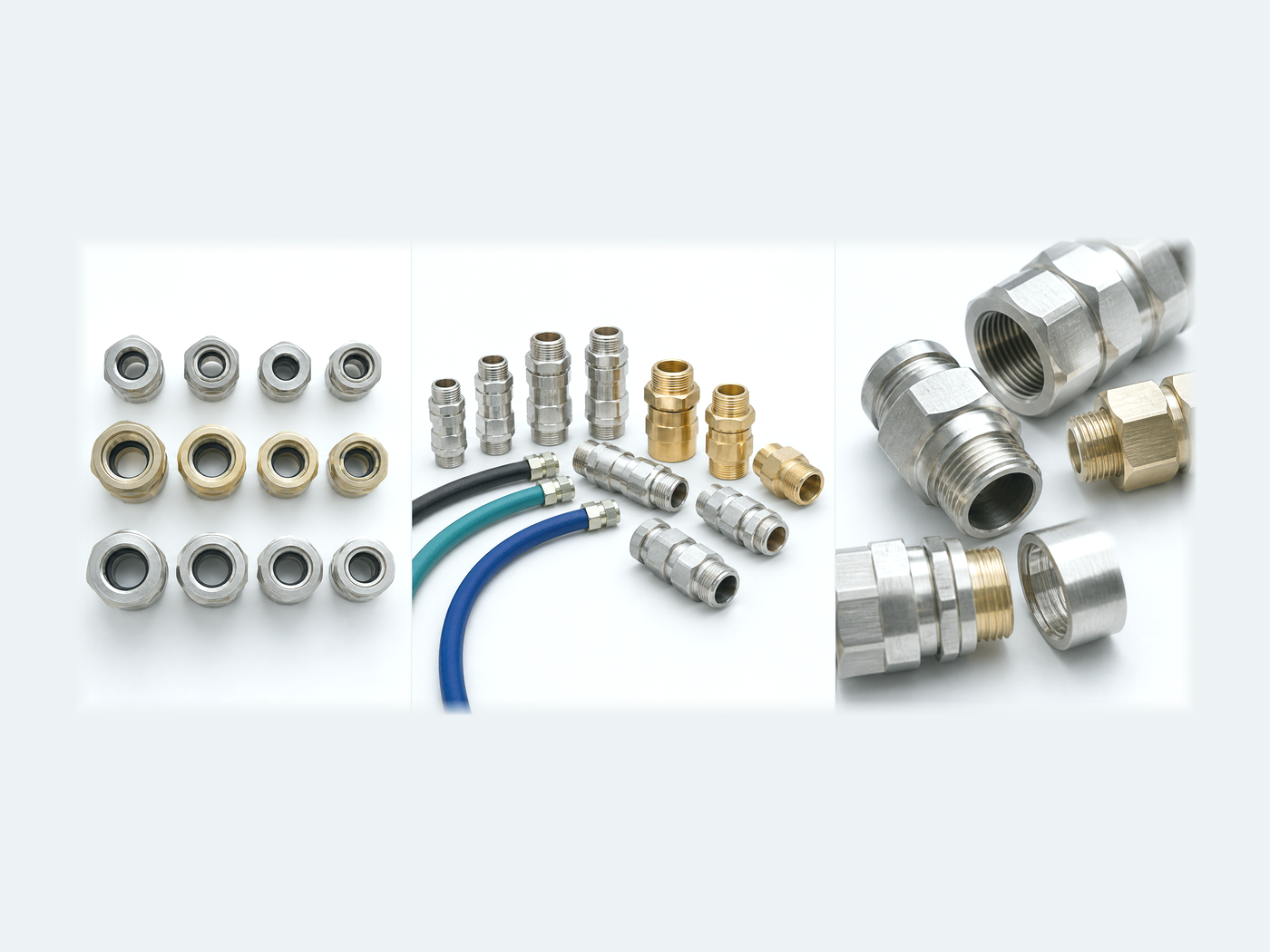

Explosion-Protected Conduit, Sealing & Entry Accessories
14 variants · MOQ from 50 pcs
View family →

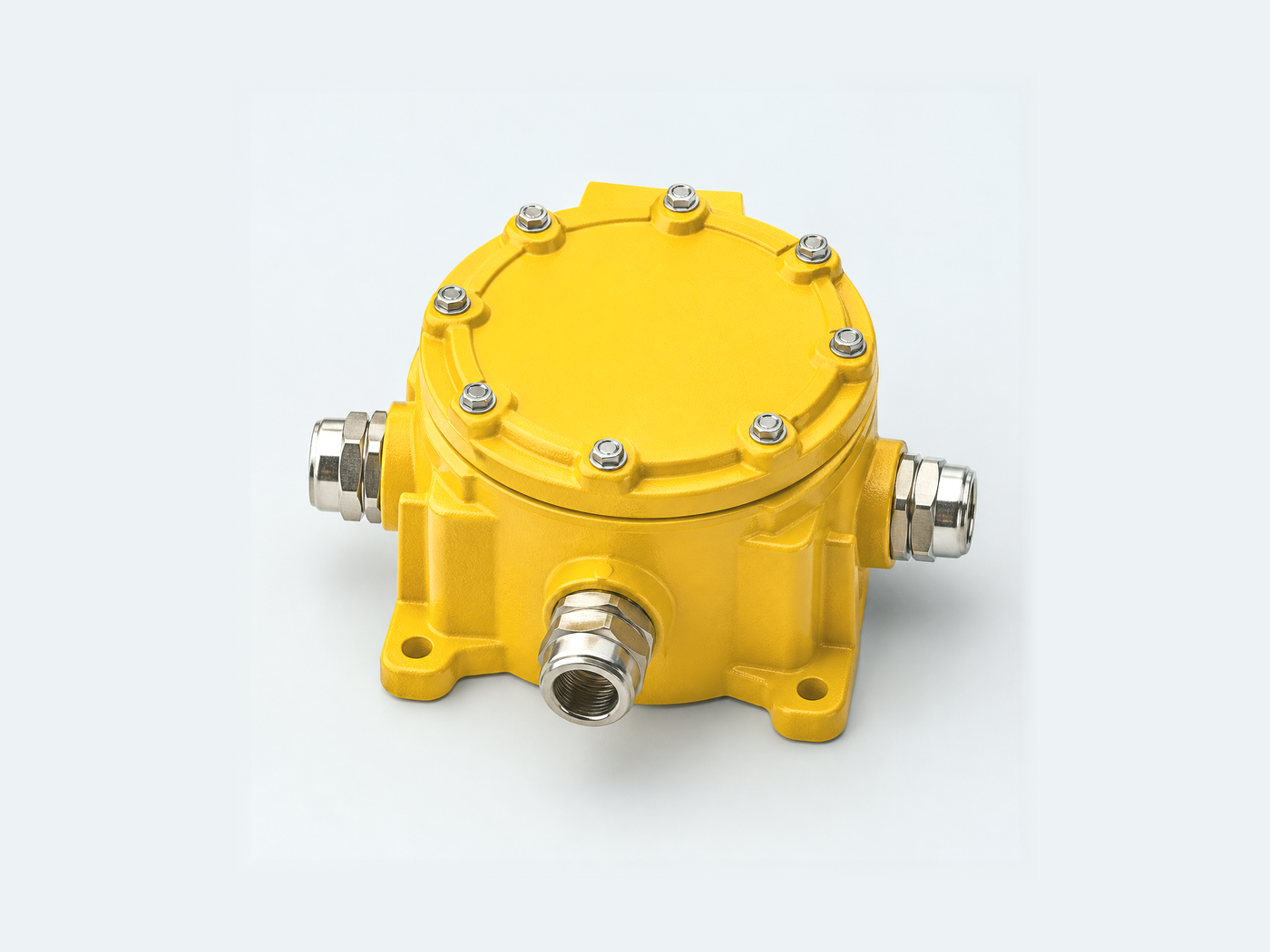

Explosion-Protected Junction Boxes & Enclosures
