EQUIPMENT FAMILY
Power transformers
Dry-type, oil-immersed and amorphous-alloy transformers for distribution and project substations. Compare construction, capacity, voltage ratio and cooling options.
HJ-AMT-D Series Amorphous Alloy Transformer – Dry
The HJ-AMT-D Series is a dry-type amorphous-alloy distribution transformer for system voltages up to 35 kV and catalogue ratings from 50 kVA to 2500 kVA. Its amorphous-alloy core is intended to reduce no-load losses compared with a conventional silicon-steel design, while the windings use vacuum-cast epoxy resin encapsulation. Cooling modes include AN/AF and insulation classes F or H.
View product →
HJ-AMT-O Series Amorphous Alloy Transformer – Oil
The HJ-AMT-O Series is an oil-immersed amorphous-alloy distribution transformer for system voltages up to 35 kV and catalogue ratings from 50 kVA to 2500 kVA. Its amorphous-alloy core is intended to reduce no-load losses compared with a conventional silicon-steel design. The hermetically sealed corrugated tank limits contact between the insulating oil and the atmosphere.
View product →
HJ-CRT Series Cast Resin Dry-Type Transformer
The HJ-CRT Series is a cast-resin dry-type transformer for indoor distribution duties, with catalogue ratings up to 35 kV and 2500 kVA. Its dry insulation avoids the combustible-liquid risks associated with oil-filled designs.
View product →

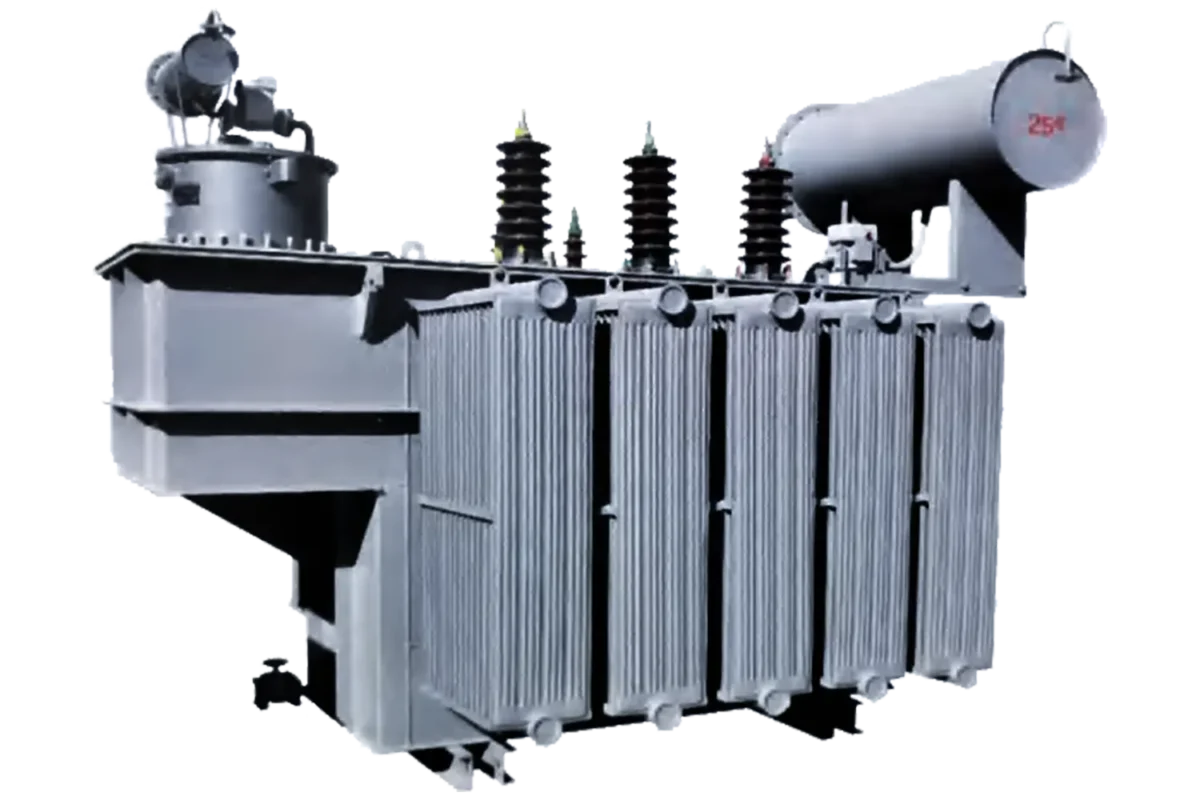

HJ-MPT Series HV Power Transformer
The HJ-MPT Series HV Power Transformer is designed for primary substations and industrial grid interconnects, with ratings up to 31.5 MVA and voltages up to 35 kV. It features oil-immersed construction, ONAN/ONAF cooling, and optional on-load tap changers. Models range from 2500 kVA to 31500 kVA, with impedance from 6.5% to 8.0%. Standards: GB/T 1094, IEC 60076.
View product →

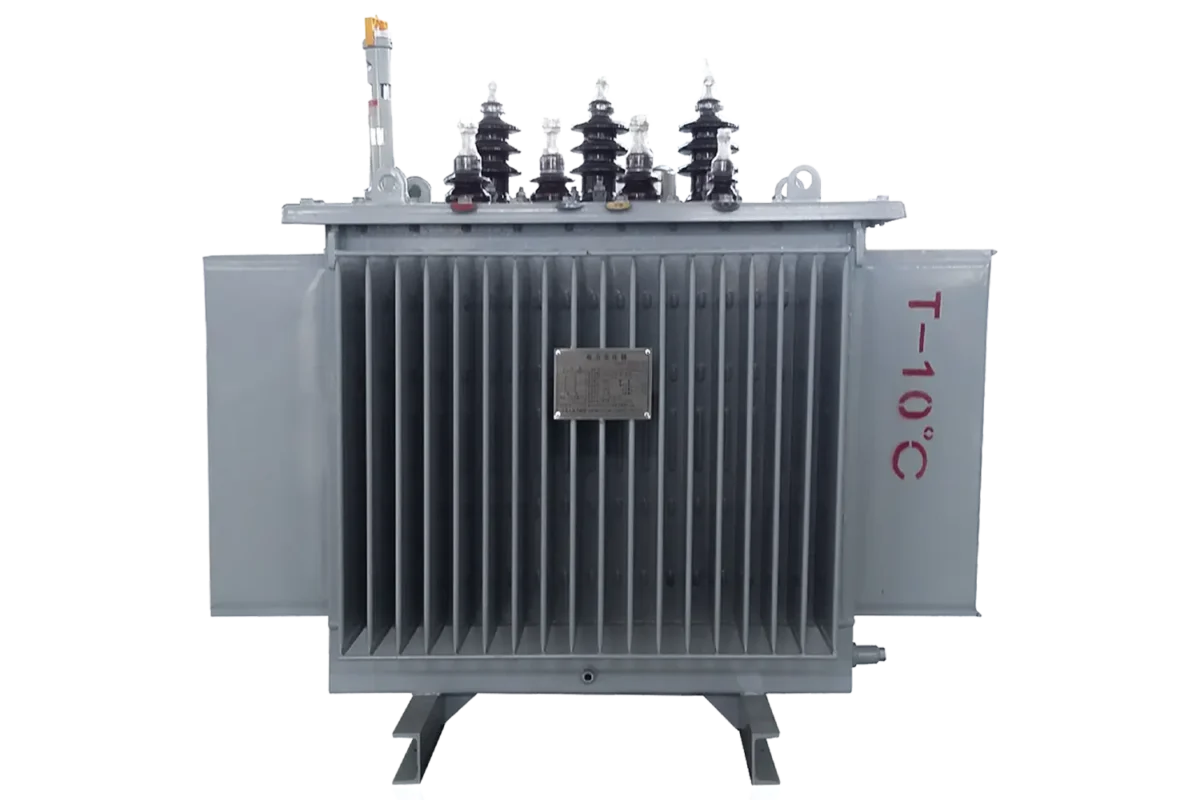

HJ-ODT Series Hermetically Sealed Oil Transformer
The HJ-ODT Series is a hermetically sealed oil-immersed distribution transformer with catalogue ratings from 50 kVA to 2500 kVA and primary voltages up to 35 kV. Its corrugated tank limits contact between insulating oil and the atmosphere.
View product →

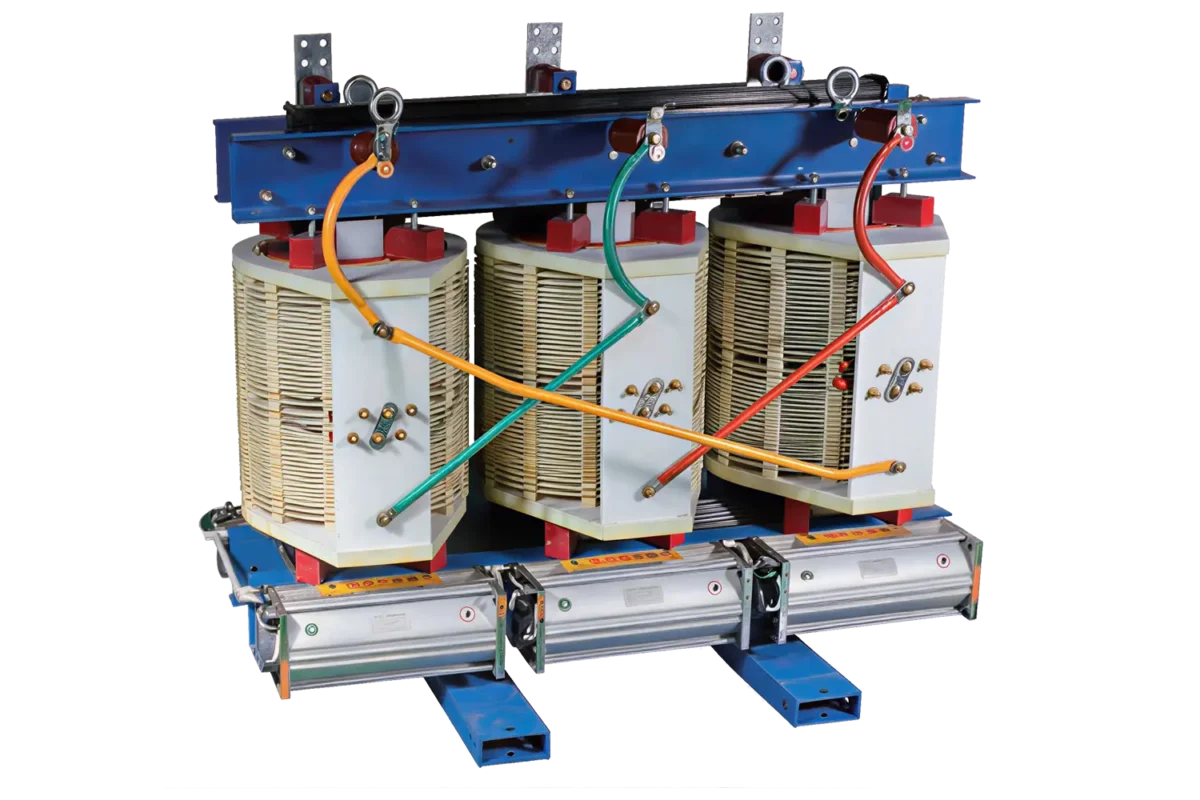

HJ-VPI Series Vacuum Pressure Impregnated Transformer
The HJ-VPI Series is a dry-type transformer with windings treated by vacuum pressure impregnation using high-temperature varnish. Catalogue ratings range from 100 kVA to 2500 kVA, with primary voltages up to 35 kV and insulation classes H or C.
View product →Product documents
Available test reports and manuals for the equipment shown on this page.
No public report or manual is currently listed for these models. The download centre contains the available company and product literature; our team can answer questions about other documents.
