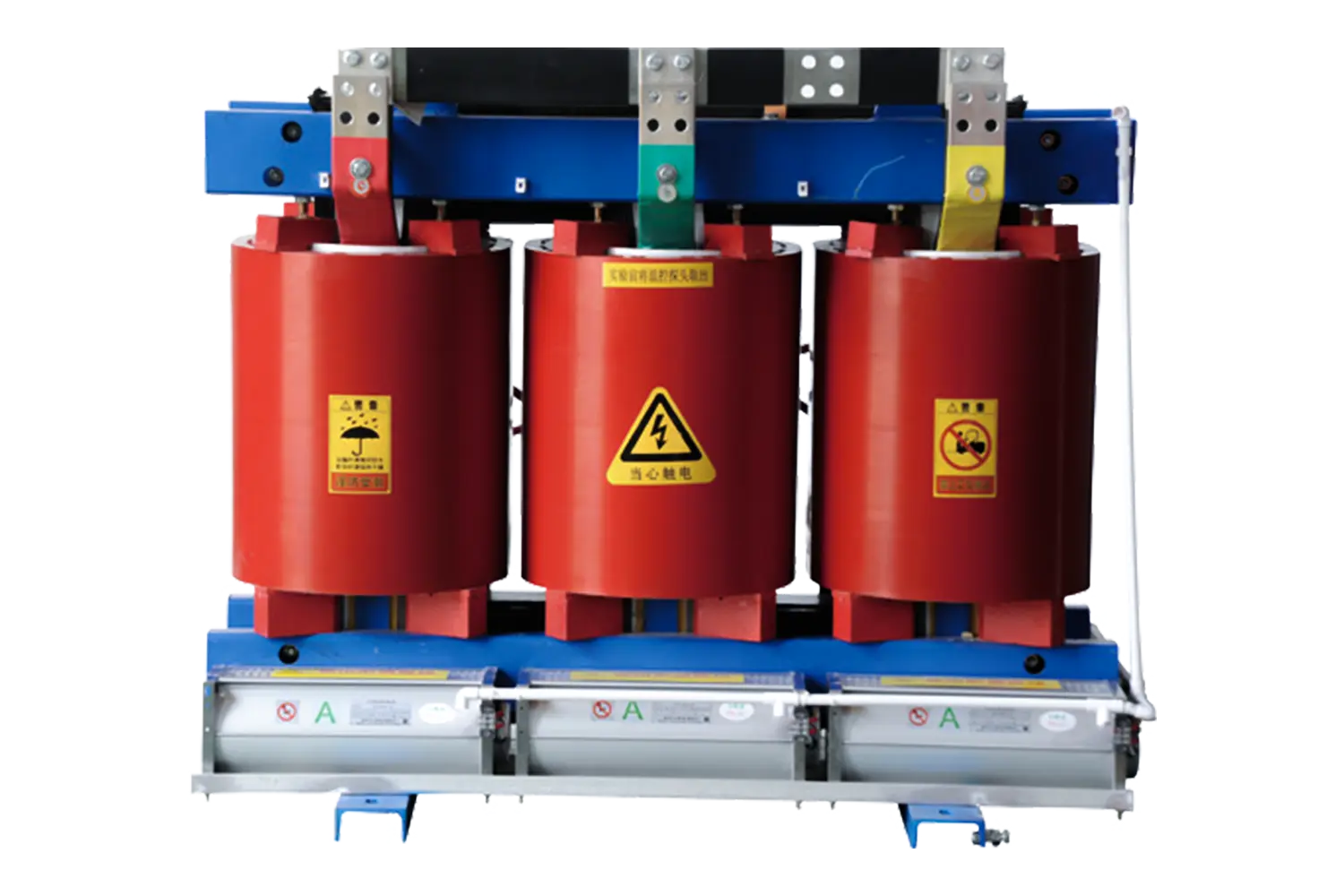

HJ-AMT-D Series Amorphous Alloy Transformer – Dry

Name: HJ-AMT-D Series Amorphous Alloy Transformer – Dry
Brand: HJATIS

The HJ-AMT-D Series is a dry-type amorphous-alloy distribution transformer for system voltages up to 35 kV and catalogue ratings from 50 kVA to 2500 kVA. Its amorphous-alloy core is intended to reduce no-load losses compared with a conventional silicon-steel design, while the windings use vacuum-cast epoxy resin encapsulation. Cooling modes include AN/AF and insulation classes F or H.

Ask about this model →See ratings ↓

HJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

Performance Matrix & Technical Specifications

Performance Matrix & Technical Specifications
Parameter / Rated Power	50kVA	250kVA	500kVA	1250kVA	2500kVA
Primary Voltage	Up to 35kV (e.g., 10kV, 11kV, 13.8kV, 20kV, 33kV)
Secondary Voltage	0.4kV / 0.415kV / 0.433kV / 0.480kV
Cooling Mode	AN / AF	AN / AF	AN / AF	AN / AF	AN / AF
Typical Impedance (%)	4.0%	4.0%	4.0%	6.0%	6.0%
Core Material	Amorphous Metal Ribbon (Ultra-Low Loss)
Insulation Class	Class F (155°C) / Class H (180°C)
Enclosure Rating Options	IP00 (Core only) / IP20 (Indoor Box) / IP23 (Outdoor Weather-proof)
Standards referenced in the source catalogue	IEC 60076-11 / IEEE C57.12.01

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required

01Primary VoltageUp to 35kV (e.g., 10kV, 11kV, 13.8kV, 20kV, 33kV)Specify exact primary voltage required

02Secondary Voltage0.4kV / 0.415kV / 0.433kV / 0.480kVSelect secondary voltage from options

03Rated Power50kVA to 2500kVAState required kVA rating

04Cooling ModeAN / AFChoose natural or forced air cooling

05Enclosure RatingIP00 / IP20 / IP23Specify enclosure protection level

STANDARDS & REPORTS

Standards and product documents.

Applicable references: GB/T 1094 and IEC 60076. Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSAsk about availability

Request drawings, data sheets and model-specific test reports.

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

Utility and industrial substations

Will this unit run in parallel with an existing transformer? Include its nameplate and test report in the enquiry.

Renewable-energy grid connections

What loading cycle and harmonic conditions will the transformer see? Share the plant operating data with the selection request.

REQUEST A QUOTATION

Send the SLD, specification or BOQ.

Include the system voltage, fault level, service conditions and delivery scope for a model selection and document list.

Ask for a quotation →
