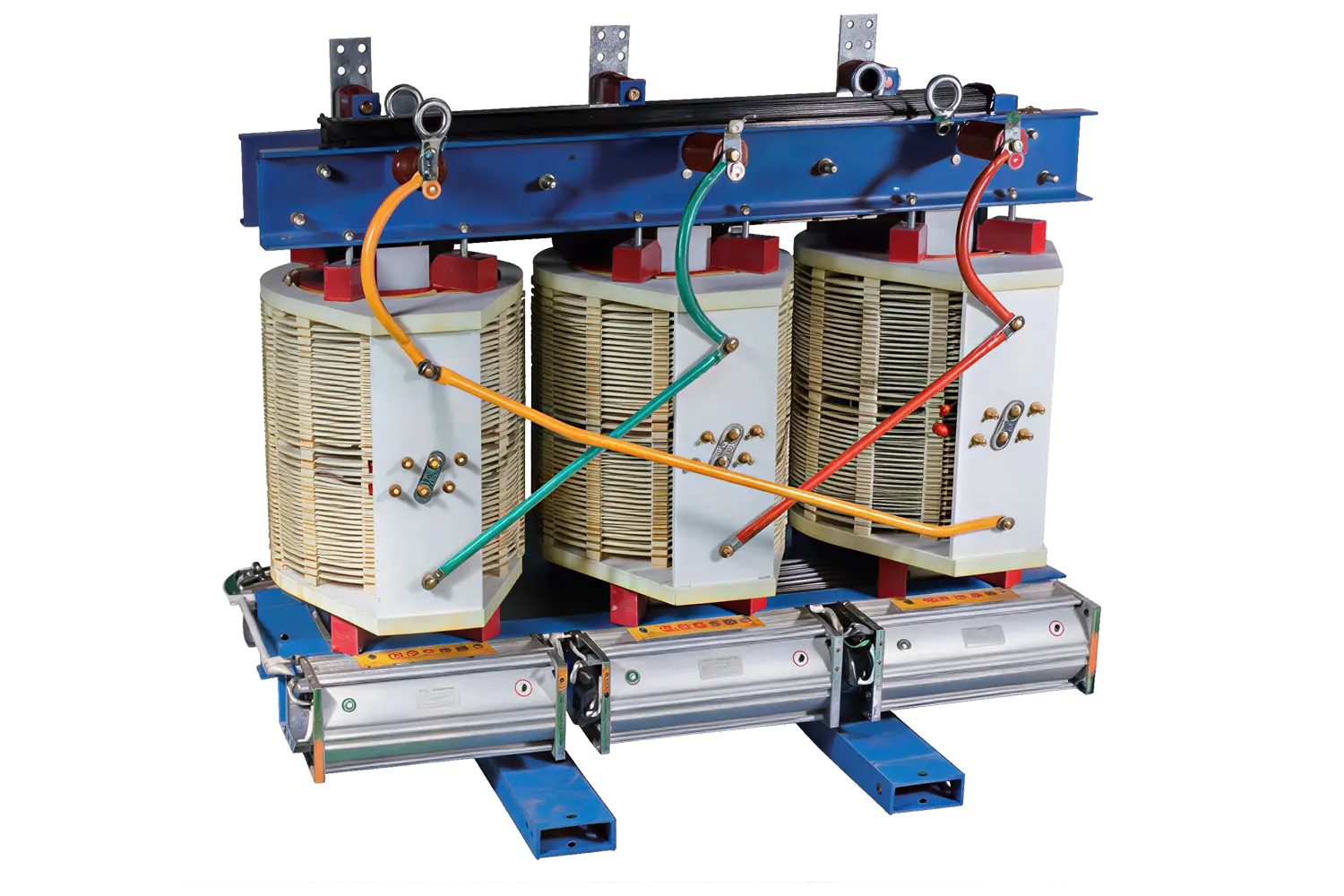

HJ-VPI Series Vacuum Pressure Impregnated Transformer

Name: HJ-VPI Series Vacuum Pressure Impregnated Transformer
Brand: HJATIS

The HJ-VPI Series is a dry-type transformer with windings treated by vacuum pressure impregnation using high-temperature varnish. Catalogue ratings range from 100 kVA to 2500 kVA, with primary voltages up to 35 kV and insulation classes H or C.

Ask about this model →See ratings ↓

HJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

Performance Matrix & Technical Specifications

Performance Matrix & Technical Specifications
Parameter / Rated Power	100kVA	500kVA	1000kVA	1600kVA	2500kVA
Primary Voltage	Up to 35kV (e.g., 10kV, 11kV, 13.8kV, 20kV, 33kV)
Secondary Voltage	0.4kV / 0.415kV / 0.433kV / 0.480kV / 0.69kV
Cooling Mode	AN / AF	AN / AF	AN / AF	AN / AF	AN / AF
Typical Impedance (%)	4.0%	4.0%	6.0%	6.0%	6.0%
Vector Group	Dyn11 / Yyn0 / Custom Configurations
Insulation Class	Class H (180°C) / Class C (220°C)
Enclosure Rating Options	IP00 (Core only) / IP20 (Indoor Box) / IP23 (Outdoor Weather-proof)
Standards referenced in the source catalogue	IEC 60076-11 / IEEE C57.12.01

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required

01Rated Power100kVA to 2500kVASpecify required kVA rating.

02Primary VoltageUp to 35kV (e.g., 10kV, 11kV, 13.8kV, 20kV, 33kV)Specify primary voltage level.

03Secondary Voltage0.4kV / 0.415kV / 0.433kV / 0.480kV / 0.69kVSpecify secondary voltage required.

04Insulation ClassClass H (180°C) / Class C (220°C)Select insulation class based on thermal requirements.

05Enclosure RatingIP00 / IP20 / IP23Specify enclosure protection level.

STANDARDS & REPORTS

Standards and product documents.

Applicable references: GB/T 1094 and IEC 60076. Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSAsk about availability

Request drawings, data sheets and model-specific test reports.

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

Utility and industrial substations

Will this unit run in parallel with an existing transformer? Include its nameplate and test report in the enquiry.

Renewable-energy grid connections

What loading cycle and harmonic conditions will the transformer see? Share the plant operating data with the selection request.

REQUEST A QUOTATION

Send the SLD, specification or BOQ.

Include the system voltage, fault level, service conditions and delivery scope for a model selection and document list.

Ask for a quotation →
