HJ-ODT Series Hermetically Sealed Oil Transformer

Name: HJ-ODT Series Hermetically Sealed Oil Transformer
Brand: HJATIS

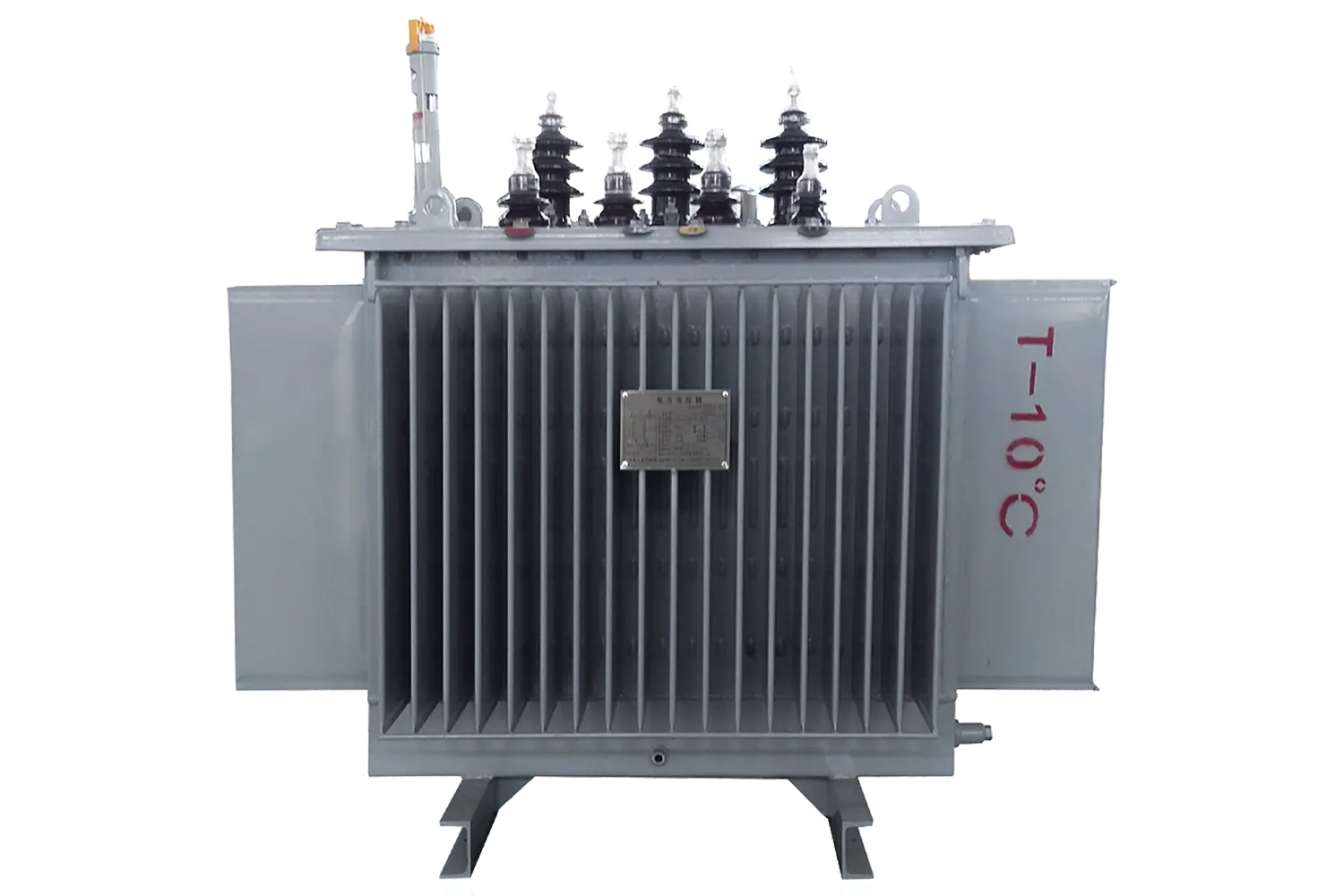

The HJ-ODT Series is a hermetically sealed oil-immersed distribution transformer with catalogue ratings from 50 kVA to 2500 kVA and primary voltages up to 35 kV. Its corrugated tank limits contact between insulating oil and the atmosphere.

Ask about this model →See ratings ↓

HJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

Performance Matrix & Technical Specifications

Performance Matrix & Technical Specifications
Parameter / Rated Power	50kVA	250kVA	500kVA	1250kVA	2500kVA
Primary Voltage	Up to 35kV (e.g., 10kV, 20kV, 35kV)
Secondary Voltage	0.4kV / 0.415kV / 0.433kV / 0.480kV
Cooling Mode	ONAN	ONAN	ONAN	ONAN	ONAF / ONAN
Typical Impedance (%)	4.0%	4.0%	4.0%	5.0%	6.0%
Vector Group	Dyn11 / Yyn0 / Custom Configurations
Tap Changer Type	Off-Circuit (OCTC) / On-Load (OLTC) optional
Insulation Level (LI/AC)	LI 75 AC 28 / LI 170 AC 70 / LI 200 AC 85 (Depends on voltage)
Standards referenced in the source catalogue	IEC 60076 / ANSI / IEEE C57.12

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required

01Rated Power50 kVA – 2500 kVASpecify required kVA rating.

02Primary VoltageUp to 35 kV (e.g., 10 kV, 20 kV, 35 kV)Specify primary voltage level.

03Secondary Voltage0.4 kV / 0.415 kV / 0.433 kV / 0.480 kVSpecify secondary voltage.

04Cooling ModeONAN (up to 1250 kVA); ONAF/ONAN at 2500 kVAConfirm cooling mode requirement.

05Vector GroupDyn11 / Yyn0 / Custom ConfigurationsSpecify vector group.

STANDARDS & REPORTS

Standards and product documents.

Applicable references: GB/T 1094 and IEC 60076. Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSAsk about availability

Request drawings, data sheets and model-specific test reports.

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

Utility and industrial substations

Will this unit run in parallel with an existing transformer? Include its nameplate and test report in the enquiry.

Renewable-energy grid connections

What loading cycle and harmonic conditions will the transformer see? Share the plant operating data with the selection request.

REQUEST A QUOTATION

Send the SLD, specification or BOQ.

Include the system voltage, fault level, service conditions and delivery scope for a model selection and document list.

Ask for a quotation →

HJ-ODT Series Hermetically Sealed Oil Transformer

Performance Matrix & Technical Specifications

Standards and product documents.

Utility and industrial substations

Renewable-energy grid connections

HJ-AMT-D Series Amorphous Alloy Transformer – Dry

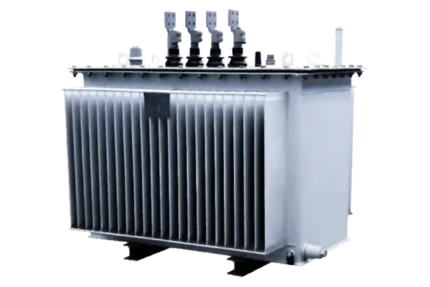

HJ-AMT-O Series Amorphous Alloy Transformer – Oil
