Final Distribution

HJ-IPC Series Integrated Pole Cabinet

The HJ-IPC Series Integrated Pole Cabinet (model HJ-JP) is an all-in-one outdoor distribution box for direct pole mounting. It integrates metering, protection (circuit breaker), and reactive power compensation in a compact unit. Suitable for rural electrification, overhead line taps, and transformer pole-top distribution. Rated voltage 400V AC, frequency 50/60 Hz, main current up to 630A, IP54 protection.

Ask about this model →See ratings ↓

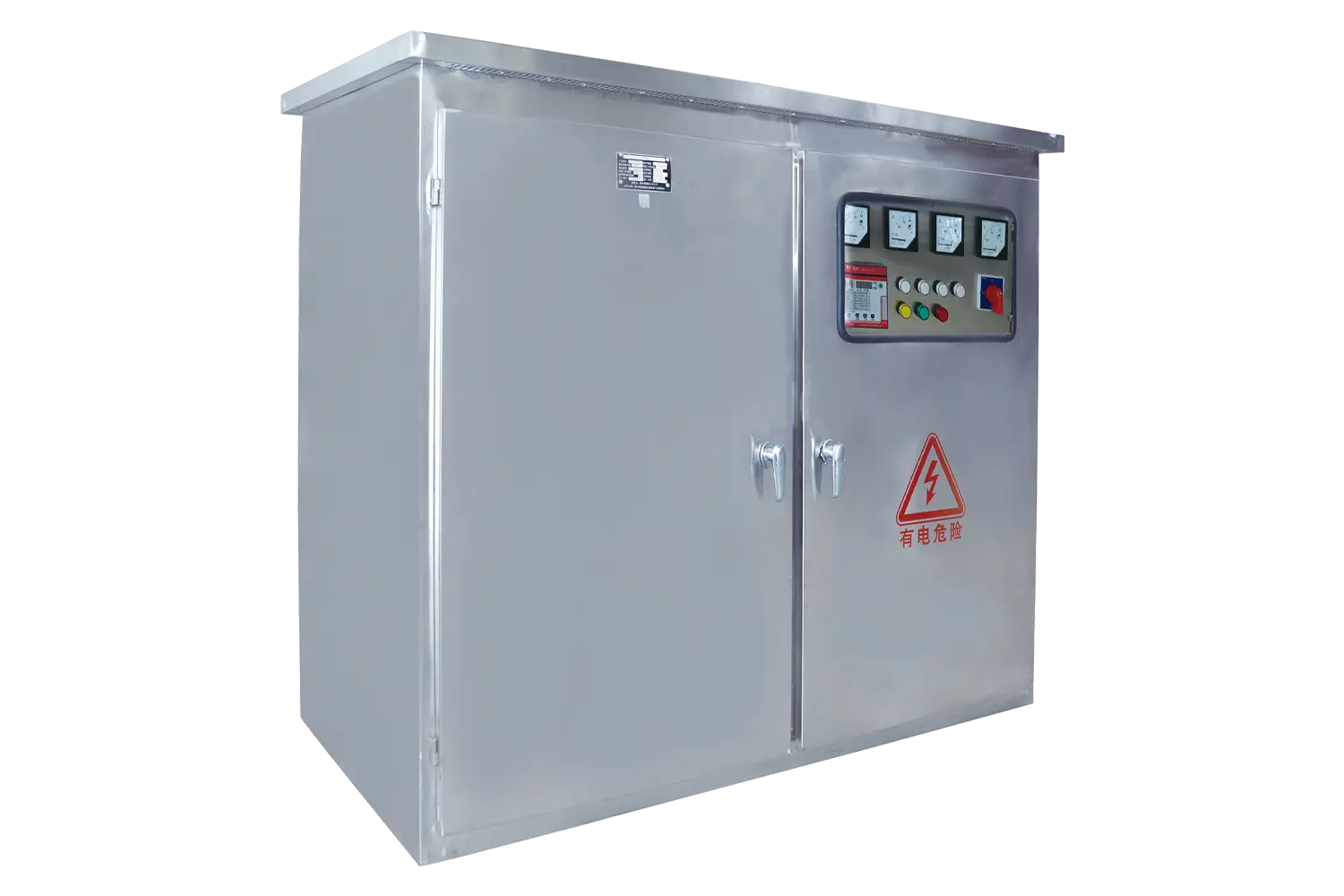

HJATIS HJ-IPC integrated pole-mounted distribution cabinet enclosureHJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

01

Technical Specifications

Technical Specifications
Electrical Parameters
Matched Transformer Capacity30kVA to 400kVA
Rated Working Voltage400V AC
Rated Frequency50 Hz / 60 Hz
Rated Main Current≤ 630A
Integrated ModulesMetering Room / Outgoing Distribution / Reactive Power Compensation
Earth Leakage Action Current30mA ~ 300mA (Adjustable)
Enclosure Protection DegreeIP54 (Designed for outdoor pole-mounting)
Enclosure MaterialStainless Steel / Premium Cold-Rolled Steel
Installation Orientation OptionsHorizontal (Landscape) / Vertical (Portrait)

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required
01Matched Transformer Capacity30kVA to 400kVASpecify transformer capacity in kVA.
02Rated Working Voltage400V ACConfirm system voltage.
03Rated Frequency50 Hz / 60 HzSelect frequency (50 or 60 Hz).
04Rated Main Current≤ 630ASpecify maximum load current.
05Enclosure Protection DegreeIP54Confirm outdoor exposure requirements.

STANDARDS & REPORTS

Standards and product documents.

Applicable references: Public-network LV assembly: verify GB/T 7251.5-2025 / IEC 61439-5 and Utility metering and project requirements. Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSAsk about availability

Request drawings, data sheets and model-specific test reports.

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

01

Industrial power distribution

How many incomers, feeders and motor starters are needed? A circuit schedule helps us prepare the lineup.

02

Critical buildings and infrastructure

What must stay powered during maintenance? Share the source and bus-coupler arrangement with your enquiry.
