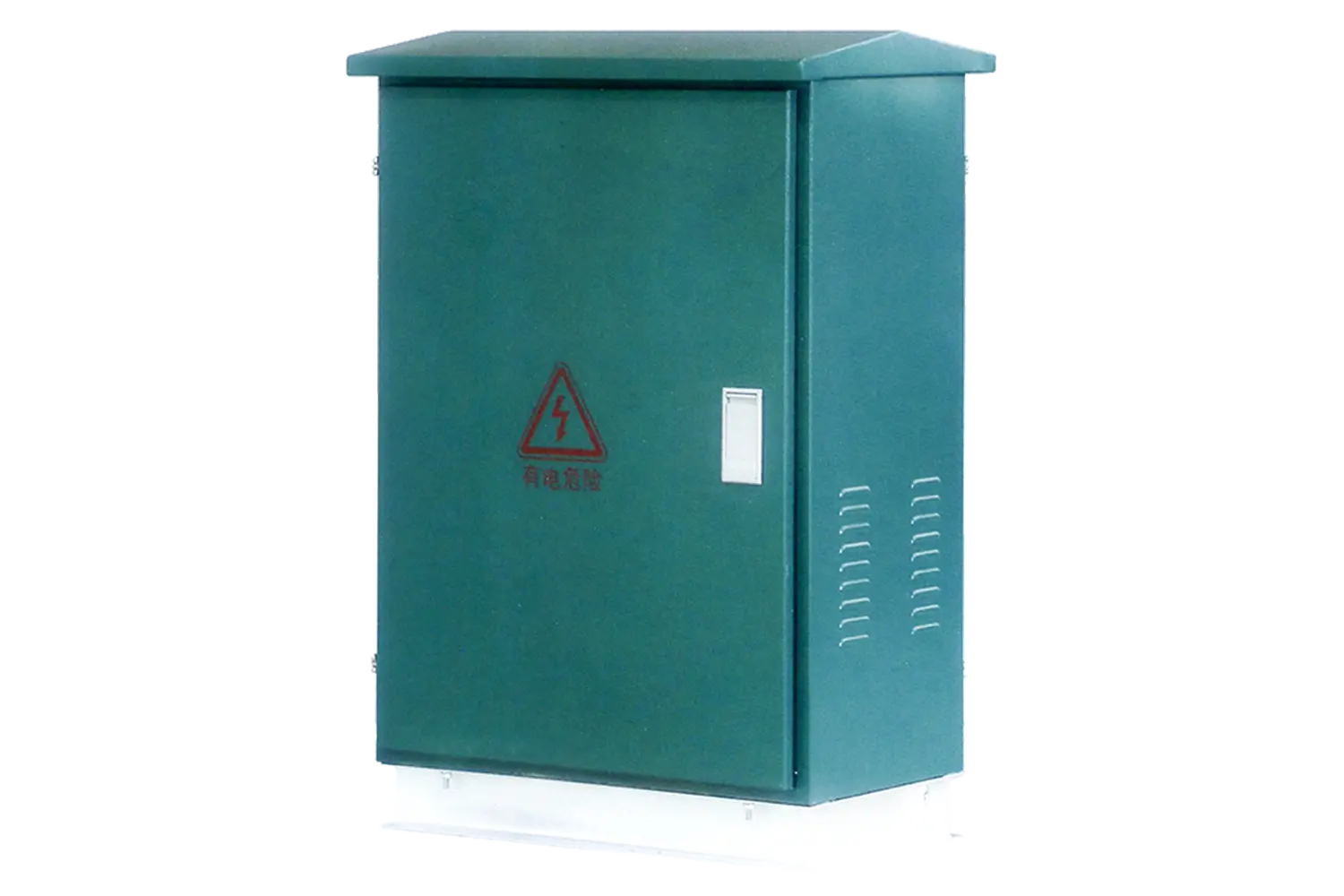

HJATIS HJ-OFP 24kV 1250A outdoor feeder pillar, providing weather-proof multi-way cable branching for robust underground power distribution
Click to enlarge
HJATIS HJ-ILBS 24kV indoor load break switch with fuse combination, designed for safe circuit isolation and transformer protection in compact substations
HJ-ILBS Series Indoor Load Break Switch
Back to products
HJATIS ABB-Authorized low voltage switchgear up to 6300A, providing IoT-ready and certified power distribution compliant with ABB global standards
ABB MDmax ST Authorized Low Voltage Switchgear

HJ-OFP Series Outdoor Feeder Pillar

MV & LV Networks / Fully Insulated / Weather-Proof

The HJ-OFP Series Outdoor Feeder Pillar (Cable Branch Box) is a robust, space-saving solution designed to act as the primary distribution hub for underground cable networks. Available in both Medium Voltage (up to 24kV) and Low Voltage (0.4kV) configurations, it provides secure, weather-resistant, and highly reliable cable branching, ensuring optimal power routing for modern urban and industrial landscapes.



Ideal for Underground Grid & Outdoor Routing:

  • ✓ Urban Street Distribution & Underground Networks
  • ✓ Residential Communities & Commercial Campuses
  • ✓ Renewable Energy (Solar Parks & Wind Farms)
  • ✓ Railway, Highway Lighting & Infrastructure Projects

MV & LV Networks / Fully Insulated / Weather-Proof

The HJ-OFP Series Outdoor Feeder Pillar (Cable Branch Box) is a robust, space-saving solution designed to act as the primary distribution hub for underground cable networks. Available in both Medium Voltage (up to 24kV) and Low Voltage (0.4kV) configurations, it provides secure, weather-resistant, and highly reliable cable branching, ensuring optimal power routing for modern urban and industrial landscapes.



Ideal for Underground Grid & Outdoor Routing:

  • ✓ Urban Street Distribution & Underground Networks
  • ✓ Residential Communities & Commercial Campuses
  • ✓ Renewable Energy (Solar Parks & Wind Farms)
  • ✓ Railway, Highway Lighting & Infrastructure Projects
Download FILES
Category:
Description
Core Advantages
Technical Specs

1. Fully Insulated & Dead-Front Safety (MV)

Operator safety is paramount. Our Medium Voltage feeder pillars utilize premium APG-casted epoxy resin bushings and touch-safe EPDM rubber plug-in connectors. This "dead-front" fully insulated architecture completely encapsulates live parts, eliminating the risk of accidental electrocution and ensuring reliable operation even in flood-prone or highly polluted areas.

2. Extreme Outdoor Weather Resilience

Engineered to conquer the elements. The outer enclosure is constructed from high-grade stainless steel or heavy-duty cold-rolled steel, treated with a marine-grade anti-corrosion powder coating. The labyrinth-style ventilation and sloped roof design effectively prevent water ingress and internal condensation, ensuring decades of rust-free service outdoors.

3. Highly Flexible Multi-Way Branching

Optimize your cable routing without bulky switchgear. The HJ-OFP series offers incredibly flexible configurations, supporting from 2-way up to 7-way branching for MV networks, and highly customized multi-outlet configurations for LV networks. This modularity allows for seamless future grid expansions.

4. Hardware-Ready for Grid Monitoring

To reduce troubleshooting time and enhance grid reliability, our feeder pillars can be factory-equipped with vital hardware accessories. Options include short-circuit and earth-fault indicators for rapid fault localization, surge arresters for lightning protection, and integrated LV fuse-switches for localized load isolation.

Global Factory Acceptance & Turnkey Support

Every HJ-OFP unit undergoes rigorous routine testing, including power frequency withstand voltage tests and partial discharge checks (for MV models), before leaving our facility. We deliver fully assembled units equipped with designated cable brackets and connectors, ready for immediate bolting onto your concrete pads and cable splicing.

Technical Specifications

(Note: Parameters cover standard configurations for both MV and LV series. Specific enclosure dimensions and connector types will be tailored to your project's cable layout.)

Medium Voltage (MV) Feeder Pillar Specifications
Rated Voltage (Ur) 12kV / 24kV
Rated Current 630A (Bolted Connector) / 200A (Plug-in Connector)
Short-Time Withstand Current 20kA (3s)
Peak Withstand Current 50kA
Branching Configurations 2-way, 3-way, 4-way, up to 7-way
Low Voltage (LV) Feeder Pillar Specifications
Rated Voltage 0.4kV (400V AC)
Rated Main Busbar Current Up to 1250A
(Custom larger capacities available)
Short-Time Withstand Current Up to 50kA
General Mechanical Characteristics
Enclosure Protection Degree Standard IP33 / IP44
(Customizable up to IP54 for extreme environments)
Enclosure Material Stainless Steel / Cold-Rolled Steel / SMC (Sheet Molding Compound)

Normal Operating Environment

  • Ambient Temperature: -30°C to +45°C.
  • Altitude: Standard ≤ 2000m.
  • Wind Resistance: Withstands wind speeds up to 35m/s.
  • Installation Site: Outdoor roadside pads, green belts, or industrial zones free from explosive dust.
