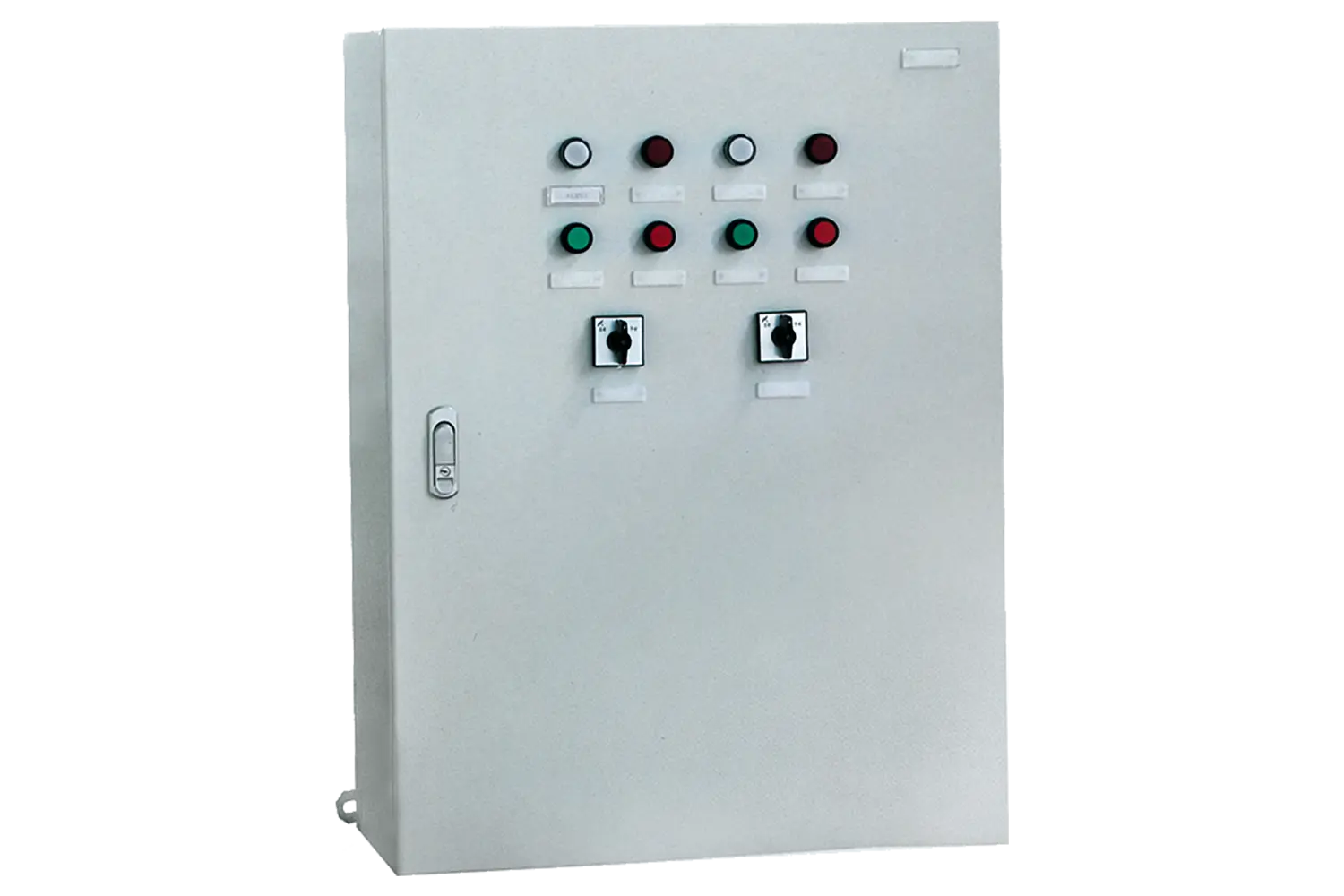

HJ-WDB Series Wall-Mounted Distribution Box

Name: HJ-WDB Series Wall-Mounted Distribution Box
Brand: HJATIS

The HJ-WDB Series is a wall-mounted terminal distribution box for final circuits, lighting and small motor loads. Catalogue configurations cover currents up to 250A, IP20 to IP65 enclosures and cold-rolled or stainless-steel construction.

Ask about this model →See ratings ↓

HJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

Technical Specifications

Technical Specifications
Electrical Parameters
Standards referenced in the source catalogue	IEC 61439-1 / IEC 61439-3
Rated Operational Voltage (Ue)	Up to 500V AC
Rated Current (In)	≤ 250A
Rated Frequency	50 Hz / 60 Hz
Wiring System Configurations	3-Phase 3-Wire / 3-Phase 4-Wire / 3-Phase 5-Wire
Enclosure Protection Degree	IP20 / IP40 / IP43 / IP54 / IP65 (Model dependent)
Installation Types	Wall-Mounted (Surface exposed / Flush concealed)
Enclosure Material & Thickness	Cold-Rolled Steel / Stainless Steel (1.2mm or 1.5mm)
Door Configuration	Single Door (Metal/Window) / Double Door (for outdoor)

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required

01Rated Current (In)≤ 250ASpecify maximum load current in amperes.

02Rated Operational Voltage (Ue)Up to 500V ACSpecify system voltage (e.g., 230V, 400V).

03Enclosure Protection DegreeIP20 / IP40 / IP43 / IP54 / IP65 (Model dependent)Select IP rating based on installation environment.

04Wiring System Configurations3-Phase 3-Wire / 3-Phase 4-Wire / 3-Phase 5-WireSpecify wiring configuration (e.g., 3-phase 5-wire).

05Enclosure Material & ThicknessCold-Rolled Steel / Stainless Steel (1.2mm or 1.5mm)Choose material and thickness based on corrosion resistance needs.

STANDARDS & REPORTS

Standards and product documents.

Applicable references: GB/T 7251.3-2017 (when operated by ordinary persons; verify) and IEC 61439-1 / IEC 61439-3 (when applicable; verify). Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSProduct documents available

Check the model and ratings in the documents below.

View documents ↓

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

Industrial power distribution

How many incomers, feeders and motor starters are needed? A circuit schedule helps us prepare the lineup.

Critical buildings and infrastructure

What must stay powered during maintenance? Share the source and bus-coupler arrangement with your enquiry.

TECHNICAL LIBRARY

Product documents

Check the tested model and ratings before using a report for your project.

All documents

Standards-change verification2024

HJ-WDB — Standards-change verification

Reported model JXF

400/230 V / 10-400 A / IP30

Report no.: 02501-24DQ5201
Test basis: GB/T 7251.2-2023

Standard-update verification with earlier tests included. The earlier report marks short-circuit testing as not performed.

65 pages·8.2 MB·English guide + Chinese original

Download PDF Open PDF

The English guide is prepared by HJATIS; it is not a laboratory translation or an IEC certificate. Results apply to the tested sample and configuration. The original report and its stated standard editions govern.
