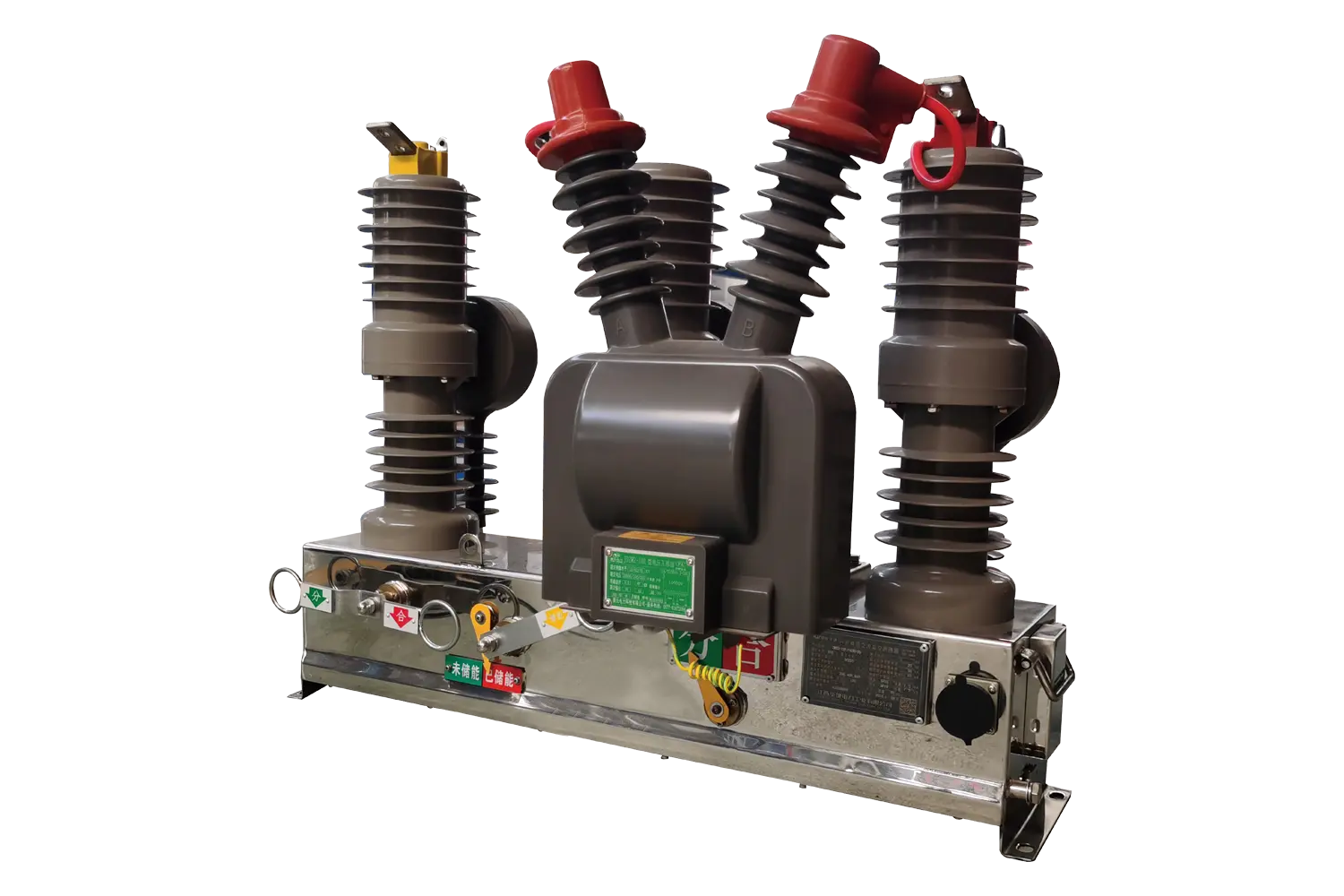

HJ-OVCB Series Outdoor Vacuum Circuit Breaker

Name: HJ-OVCB Series Outdoor Vacuum Circuit Breaker
Brand: HJATIS

The HJ-OVCB Series Outdoor Vacuum Circuit Breaker covers rated voltages from 12kV to 40.5kV with spring or magnetic actuators. It offers solid dielectric, SF6-gas, and vacuum/air composite insulation options. Designed for outdoor applications including pole-mounted switching, auto-reclosing, smart grid nodes, and substations. Enclosure rating IP65+.

Ask about this model →See ratings ↓

HJATIS

PUBLISHED PRODUCT DATA

Catalogue ratings and configurations.

The project data sheet should state the selected rating, options and site conditions.

Model Selection & Technical Specifications

Model Selection & Technical Specifications
MODEL SERIES	RATED VOLTAGE	CORE INSULATION / ENCLOSURE	KEY ENGINEERING FEATURE	TYPICAL APPLICATION
HJ-OVCB-S Series	12kV / 24kV	Solid Dielectric (Epoxy/Silicone)	Compact, High Reliability	Standard Pole-Mounted Switching
HJ-OVCB-R Series	12kV	Solid Dielectric	Smart Recloser & Motorized	Auto-Recloser (ACR) & Smart Grid
HJ-OVCB-W Series	12kV	SF6-Gas Insulation (Zero gauge)	Zero-sequence CT Integrated	Boundary "Watchdog" Switch
HJ-OVCB-M Series	12kV	Solid Dielectric	Permanent Magnetic Actuator	High-frequency Operation Nodes
HJ-OVCB-C Series	12kV	Vacuum / Air Composite	Classic Rugged Design	Rural Grid Upgrades
HJ-OVCB-40 Series	40.5kV	Porcelain / Silicone Rubber	High Clearance, Heavy Duty	Outdoor Substations (33/36kV)

CONFIGURATION

Select your configuration.

Tell us which ratings and options you need.

ParameterCatalogue indicationProject input required

01Rated Voltage12kV / 24kV / 40.5kVSpecify system voltage (e.g., 12kV, 24kV, 40.5kV)

02Actuator TypeSpring or Permanent MagneticSelect actuator type based on operation frequency

03Insulation / EnclosureSolid Dielectric (Epoxy/Silicone), SF6-Gas, Vacuum/Air Composite, Porcelain/Silicone RubberChoose insulation based on environmental conditions

04Enclosure RatingIP65+Confirm IP rating meets site requirements

05StandardsGB/T 1984 / IEC 62271-100Confirm the applicable edition and type-test evidence

STANDARDS & REPORTS

Standards and product documents.

Applicable references: GB/T 1984 and IEC 62271-100. Ask for the edition and reports covering the model offered; a standard number alone does not confirm product compliance.

PRODUCT DOCUMENTSAsk about availability

Request drawings, data sheets and model-specific test reports.

Compare GB and IEC references ↗Your StandardBridge inputs and results are not attached to a sales enquiry automatically.

APPLICATIONS

Questions for your application.

Utility and industrial distribution

What are the feeder rating and fault level at the installation point? Send the protection scheme with the enquiry.

Renewable-energy collection networks

Will the device switch cables, transformers or other plant loads? State the switching duty and required control signals.

REQUEST A QUOTATION

Send the SLD, specification or BOQ.

Include the system voltage, fault level, service conditions and delivery scope for a model selection and document list.

Ask for a quotation →
